YE-0045BK - Aluminium Case 10kg Low Profile Digital Servo For 1/10 RC

Low Profile Servo

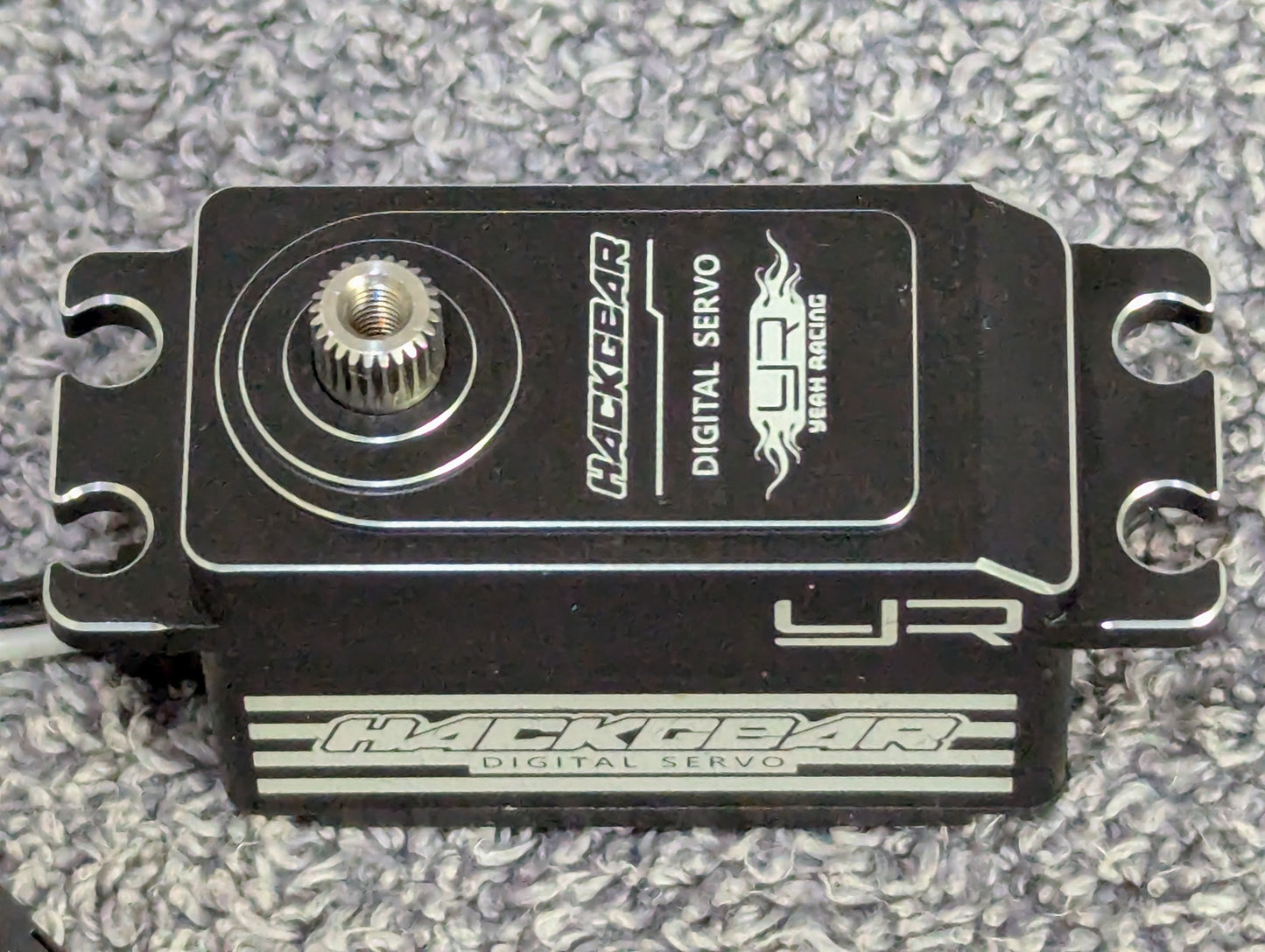

Yeah Racing Aluminium Case 10kg Hackgear Low Profile Digital Servo For 1/10 RC (Tamiya HPI Kyosho)

Full aluminum case low profile servo for 1/10 applications! Featuring near 10kg's worth of Torque at 7.4v, and a speed of under a tenth of a second will make this servo fit for drift and on-road racing! Full aluminum case ensures all the heat gets dissipated!

Feature:

• Case: Aluminum

• Color: Black

• Motor: Brushed

• Operating voltage:4.8-7.4V

• Operating speed: 4.8V-0.090sec/60° , 6.0V-0.085sec/60°  ,7.4V-0.080sec/60°

• Torque:  4.8V/10kg/cm , 6.0V-11kg/cm , 7.4V-12kg/cm

• Gear :Stainless steel

• Spline:25T Operating Temperature:-15℃~+70℃

• Operating travel :≈180±10°

• Neutral position :1520μsec

• Frequency:1520uS

• Refresh Rate:333Hz

• Pules width range :500-2500μsec

• Dead band width:2μsec

• Connector Wire : JR

Specification:

• Dimension: 40.9 x 20.3 x 28.2mm

• Net Weight: 58g

Include:

• Low Profile Digital Servo (1 pc)

• Mounting Hardware (1 pack)
